Motorised roller curtains

Motorised roller curtains provide fixed and effective protection that is easy to retract as needed. They are used, for example, to prevent the spread of grinding dust and sparks between working areas. Our roller curtains are operated by toggle switch or remote control. It is also possible to control your roller curtain automatically via machine or robot. Select the correct curtain material based on what you want to screen off (see below).

Photos

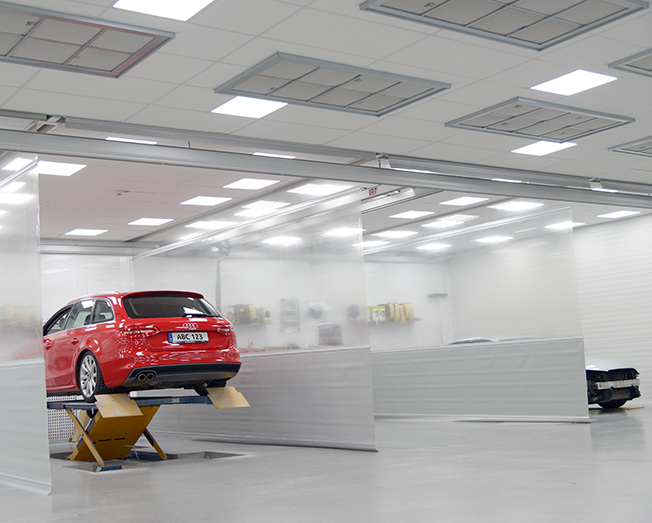

  • Roller curtains as partition between workplaces
  • Roller curtains as partition between workplaces
  • Roller curtain – three-field combi
  • Roller curtain – three-field combi
  • Roller curtain – two-field combi
  • Roller curtain – single colour

Technical information

Size: Customised to requirements (max. width 8 m)
Weight: Approx. 25 kg for a width of 4 m, excl. weight of curtain material
Lifting power Up to 90 kg
Supply: with CE-marked motor AC 1,1A
Enclosure class: IP 44
Control options: Toggle switch, remote control or automatically via machine or robot.



The winding speed varies depending on the width of the roller curtain and the type of control system required. Contact us for more information.





You can choose up to 3 different materials and colours for a single roller curtain. See Choice of materials for more information.

Contact

For more information about our roller curtains and your nearest retailer, contact

Industridraperier AB
Tel: +46 (0)19-22 30 50
E-mail: info@industridraperier.se

Choice of materials

Protects against Properties Colours Material Item.no Tech.data
General workplace screening
These materials can be used in any location
Flexible
Flame-resistant
Numerous different colours
Colours and viewing field
are combined
Clear transp PVC 101110
gra_transp Grey transp PVC 101115
Yellow opaque PVC 101020
Red opaque PVC 101021
Green opaque PVC 101022
White opaque PVC 101023
Blue opaque PVC 101024
Grey opaque PVC 101025
Black opaque PVC 101026
Beige opaque PVC 101027
solid_darkgrey Dark grey opaque PVC 101028
Welding light
UV radiation
Translucent screening
Stops all UV radiation
Flexible
Flame-resistant
Yellow transp PVC 101111
Red transp PVC 101112
Green transp PVC 101113
Blue transp PVC 101114
Radiant heat
High temperature
Fire
Hot sparks
Non-flammable Aluminium fibreglass curtain 105200
PU cloth 60 105000
Strong chemicals
Sparks
High temperature
Adaptable cloth that will stand up to most things Silicone 105100
Teflon 105101
Intense cold
Wind and weather outdoors
Adaptable for cold weather PVC-PU cloth (-45 °C)  105400
Heavy-duty cloth (-30 °C)  101326
Simple protection and screening Simple screening at a low cost Green opaque tarpaulin 101601
Blue opaque tarpaulin 101602
Grey opaque tarpaulin 101603
